ClearSplit: one verified core, three Groovy 6 apps. The conservation theorem, proved at compile time with groovy-verify and Z3, beside the Grails, groovy-fx and Android apps showing balances that sum to $0.00

Introduction

Splitting the bill after a group dinner sounds like the easiest program in the world. Add up who paid, divide by who ate, done. Until the total is $10 and there are three of you, and somebody’s app quietly loses a cent. Or gives it to the friend who stayed home.

ClearSplit is a small expense splitter written in Dafny to show that this kind of code can be proved correct, not just tested. A group has members; members record expenses, split among some of them, and settlements, where one member pays another back. ClearSplit proves the properties you’d want from a money app: an expense’s shares add up to exactly what was paid, each step moves each balance by exactly the right amount, and however long the history, the balances always sum to zero. Money is never created or destroyed. There is also a LemmaScript version, where the same ideas are written as annotated TypeScript and verified.

This post ports ClearSplit to Groovy 6. The proofs use groovy-verify, which turns ordinary Groovy contracts into compile-time proofs checked by the Z3 SMT solver (the formal methods post has the full story). Then, because a verified kernel is more fun when someone can use it, we put three front ends over the very same core:

  • a web app using a Grails 9 snapshot,

  • a desktop app using the proposed groovy-fx module,

  • and an Android app in dynamic Groovy.

All three show the same group, the same history and the same numbers.

This is a spike, not a product. Several of the pieces are snapshots or previews: Grails 9 isn’t released, groovy-fx is still a pull request, and Groovy on Android is a Groovy 6 preview feature. Think of it as a look at where things are heading.

The shape of the project

The project is a Gradle multi-project build:

Module What it holds

core

The verified kernel, Split and Balances, plus Group, the immutable model the apps use.

web

A Grails 9.0.0-SNAPSHOT app (Groovy 6.0.0, Spring Boot 4.1).

fx

A desktop app using groovy-fx, built from the pull request sources.

android

An Android app, built the way the tic-tac-toe post described.

The kernel works on member indices and amounts in cents, as the LemmaScript version does. It’s statically checked by groovy-verify, so a failed proof is a compile error. Everything else is ordinary Groovy, and much of the UI code is dynamic Groovy.

Splitting a bill, exactly

Let’s start with a cautionary tale. groovy-verify’s examples include a port of the program on LemmaScript’s front page: an agent’s first try at splitting a total across weights. It floors each share, so allocate(10, [1, 1, 1]) returns [3, 3, 3] and a cent vanishes. The fix hands the leftover cents back out, one at a time, and the port proves LemmaScript’s postcondition:

@Ensures({ result.sum() == total })

And it’s true! But look at what the leftover loop does: it gives the spare cents to positions 0, 1, 2, and so on, whatever their weights. So allocate(1, [0, 1, 1]), splitting one cent between members 1 and 2, returns [1, 0, 0]. It charges member 0, who wasn’t part of the expense at all. The proof is fine; the specification just doesn’t say that.

A proof is only as good as its specification. ClearSplit’s version says a lot more. Here is the Groovy port’s Split.equally, where joined[m] is 1 when member m shares the cost and 0 otherwise:

@TypeChecked(extensions = 'verification.VerifyChecker')
class Split {
    @Requires({ joined != null && (0..<joined.length).every { joined[it] == 0 || joined[it] == 1 } })
    @Requires({ total >= 0 && joined.sum() > 0 })
    @Ensures({ result.length == joined.length && result.sum() == total })
    @Ensures({ (0..<joined.length).every { joined[it] == 0 ==> result[it] == 0 } })
    @Ensures({ (0..<joined.length).every { joined[it] == 1 ==>
        (result[it] == total.intdiv(joined.sum()) || result[it] == total.intdiv(joined.sum()) + 1) } })
    static int[] equally(int total, int[] joined) {
        ...
    }
}

Three promises: the shares add up to the total exactly; anyone who didn’t join pays nothing; and everyone who did pays the floor of an equal share or one cent more. The =⇒ is Groovy 6’s implication operator, which reads nicely in specs. These are stock groovy.contracts annotations, so the same contracts also run as runtime checks wherever the code runs.

The body works out the floored share and how many cents flooring lost, then leaves the rest to two smaller verified methods:

static int[] equally(int total, int[] joined) {
    int p = joined.sum()
    int base = total.intdiv(p)
    int left = total - p * base             // the cents lost to flooring
    assert 0 <= left && left < p
    int[] shares = baseShares(base, joined)
    handOut(shares, joined, left)
}

baseShares gives everyone who joined the floored share, and proves that nobody else pays anything and the shares add up to p * base. handOut then gives the first left participants one cent more. Swap in `allocate’s leftover loop here and `equally’s second postcondition fails at compile time:

@Requires({ shares != null && joined != null && shares.length == joined.length })
@Requires({ (0..<joined.length).every { joined[it] == 0 || joined[it] == 1 } && 0 <= left && left <= joined.sum() })
@Ensures({ result != null && result.length == shares.length && result.sum() == shares.sum() + left })
@Ensures({ (0..<shares.length).every { result[it] == shares[it] || (joined[it] == 1 && result[it] == shares[it] + 1) } })
static int[] handOut(int[] shares, int[] joined, int left) {
    int n = shares.length
    int[] result = new int[n]
    int given = 0
    int r = 0
    int s = 0
    int c = 0
    int k = 0
    @Invariant({ 0 <= k && k <= n && n == shares.length && n == joined.length && result.length == n })
    @Invariant({ r == result[0..<k].sum(0) && s == shares[0..<k].sum(0) && c == joined[0..<k].sum(0) })
    @Invariant({ given == (c < left ? c : left) && r == s + given })
    @Invariant({ (0..<k).every { result[it] == shares[it] || (joined[it] == 1 && result[it] == shares[it] + 1) } })
    @Decreases({ n - k })
    while (k < n) {
        if (given < left && joined[k] == 1) {
            result[k] = shares[k] + 1
            given = given + 1
        } else {
            result[k] = shares[k]
        }
        r = r + result[k]
        s = s + shares[k]
        c = c + joined[k]
        k = k + 1
    }
    return result
}

The invariants carry the proof. r, s and c are running totals over the prefix seen so far (result[0..<k].sum(0) is the sum of the first k elements). The key line is given == (c < left ? c : left): after seeing c participants we’ve handed out a cent to each of them, until the left cents ran out. At the end c is the number of participants, which is at least left, so given == left, and the shares add up to shares.sum() + left. Back in equally, that is p * base + left, which is total. Z3 does that arithmetic; we only had to say it.

Balances that always add up

Balances are in cents too: positive means the group owes you, negative means you owe the group. Balances.afterExpense and afterSettlement prove Dafny ClearSplit’s delta laws, which say exactly how each step moves each member’s balance:

@Requires({ bal != null && shares != null && shares.length == bal.length && 0 <= payer && payer < bal.length })
@Ensures({ result != null && result.length == bal.length })
@Ensures({ (0..<bal.length).every { result[it] == bal[it] + (it == payer ? amount : 0) - shares[it] } })
@Ensures({ shares.sum() == amount ==> result.sum() == bal.sum() })
static int[] afterExpense(int[] bal, int payer, int amount, int[] shares) { ... }

The payer is owed the amount, everyone owes their share, and when the shares add up to the amount the total doesn’t change.

The headline result is ClearSplit’s conservation theorem: after any valid history of expenses and settlements, starting from nothing, the balances sum to zero. In Groovy, the history comes in as parallel arrays, and each expense’s shares are a row of one flat array (groovy-verify’s fragment doesn’t include int[][], but slices of a flat array work well). The theorem is a fold of the two steps over the history:

@Requires({ (0..<payer.length).every { flat[off[it]..<off[it] + members].sum(0) == amount[it] } })
// ... plus the bounds and validity preconditions
@Ensures({ result.length == members && result.sum() == 0 })
static int[] of(int members, int[] payer, int[] amount, int[] flat, int[] off, int[] from, int[] to, int[] paid) {
    int[] bal = new int[members]
    int e = 0
    @Invariant({ bal != null && bal.length == members && bal.sum() == 0 })
    // ...
    while (e < payer.length) {
        int[] shares = row(flat, off[e], members)   // proved to sum to flat[off[e]..<off[e] + members]
        bal = afterExpense(bal, payer[e], amount[e], shares)
        e = e + 1
    }
    int t = 0
    @Invariant({ bal != null && bal.length == members && bal.sum() == 0 })
    // ...
    while (t < from.length) {
        bal = afterSettlement(bal, from[t], to[t], paid[t])
        t = t + 1
    }
    return bal
}

The one precondition that matters is the first: every expense’s shares add up to its amount. That is exactly what Split.equally guarantees, so the two proofs fit together. Each loop only needs the steps' contracts, not their bodies, which is what makes a proof built from smaller proofs manageable. On a laptop, the core module, verification included, compiles in about 45 seconds.

Does the proof have teeth?

A proof that passes no matter what is worse than no proof, because it gives false confidence. So for every proof I did what mutation testing does for tests: break the code, or delete a hypothesis, and check the build fails. Every proof in the kernel passes. Delete the "shares add up to the amount" precondition from Balances.of, or drop from != to for settlements, or hand out one cent too many in equally, or give the spare cents to whoever comes next, as allocate does, and each time the build fails.

The checks earned their keep along the way. An early version of the fold still verified with its key precondition deleted, which led to a soundness fix in groovy-verify, and a few other issues the port turned up were fixed there too. groovy-verify is moving quickly, and this post uses a recent snapshot of it.

That’s the value of a real application as a test case for a verifier, and a reminder that "it verified" deserves the same scepticism as "the tests pass".

The unverified glue

Above the kernel sits Group, an immutable record holding the member names, expenses and settlements. It isn’t verified, but it’s built so the kernel’s preconditions always hold. Like the Step function in the Dafny version, it only lets valid actions in:

@CompileStatic
record Group(List<String> members, List<Expense> expenses, List<Settlement> settlements) implements Serializable {

    /** An expense split equally among the participants, by the verified {@link Split#equally}. */
    Expense splitEqually(String description, int payer, int amount, Collection<Integer> participants) { ... }

    /** This group with the expense added; an invalid expense is rejected. */
    Group plus(Expense e) {
        if (!(0 <= e.payer() && e.payer() < size())) throw new IllegalArgumentException('The payer must be a member')
        ...
        if (e.shares().sum(0) != e.amount()) throw new IllegalArgumentException('The shares must add up to the amount')
        new Group(members, expenses + e, settlements)
    }

    /** This group with the settlement added; an invalid settlement is rejected. */
    Group plus(Settlement s) { ... }

    /** Everyone's balance, by the verified {@link Balances#of}: they always sum to zero. */
    int[] balances() { ... }
}

Since plus is Groovy’s + operator, the apps write group + expense. Each app’s job is then small: turn user input into a Group, catch the IllegalArgumentException and show its message.

The web app: Grails 9

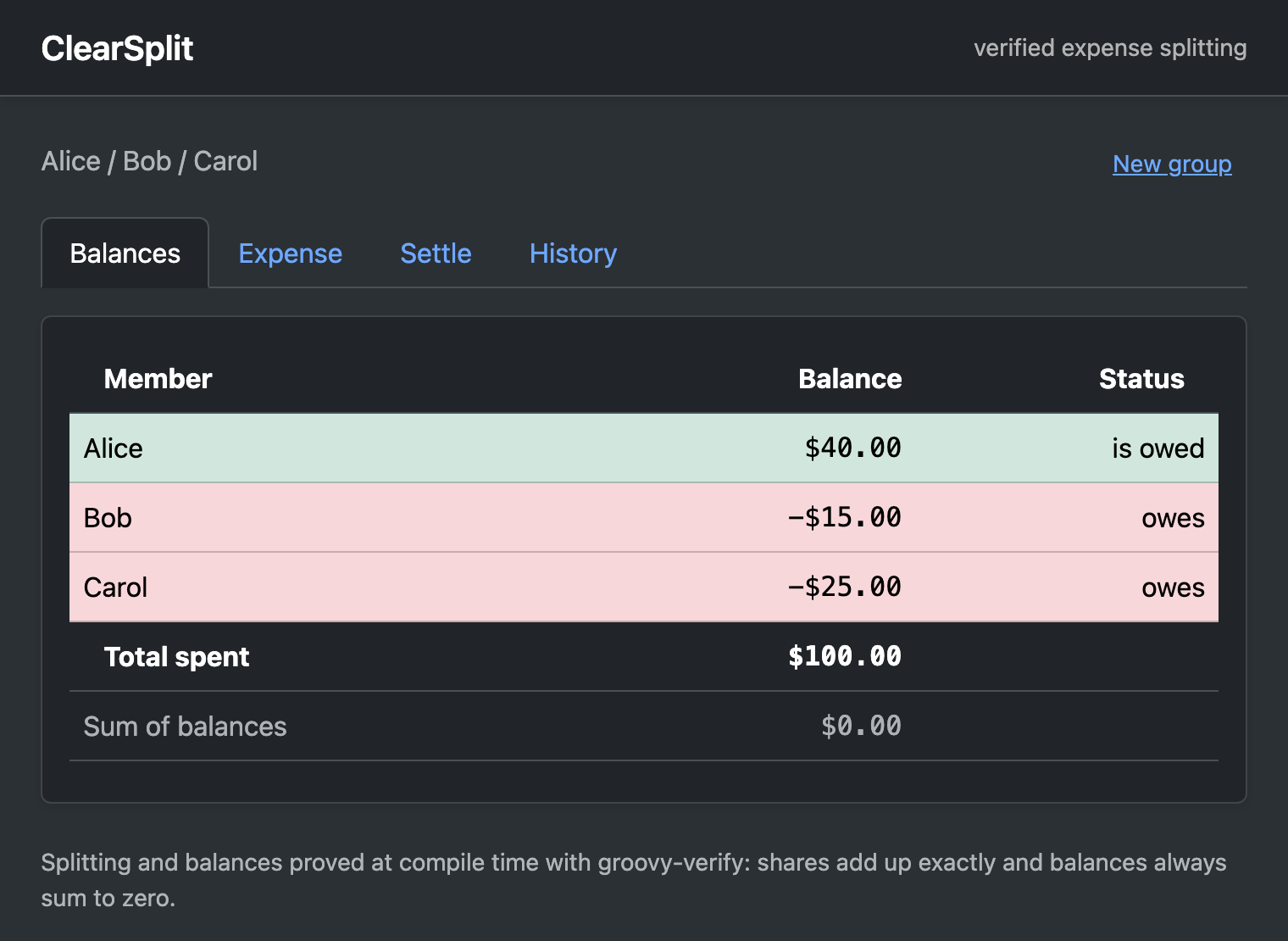

The Grails app: balances for Alice, Bob and Carol summing to $0.00

Grails 8 runs on Groovy 5, but groovy-verify needs Groovy 6, and so does everything else in this post. So the web app uses a Grails 9.0.0-SNAPSHOT, which brings Groovy 6.0.0 and Spring Boot 4.1. Apart from bumping the version and dropping the database (the group lives in the HTTP session), it’s a standard Grails app from Grails Forge. The controller is a few short actions:

def expense(String description, Integer payer, String amount) {
    attempt('expense') {
        Group group = session.group as Group
        Integer cents = Group.cents(amount)
        if (!cents) throw new IllegalArgumentException('Enter an amount above zero')
        List<Integer> participants = params.list('participant').collect { it as Integer }
        session.group = group + group.splitEqually(description ?: 'Expense', payer ?: 0, cents, participants)
        'Expense recorded'
    }
}

private attempt(String tab, Closure<String> action) {
    try {
        flash.message = action()
        redirect action: 'index', params: [tab: flash.message ? 'balances' : tab]
    } catch (IllegalArgumentException e) {
        flash.error = e.message
        redirect action: 'index', params: [tab: tab]
    }
}

The views are GSP with Bootstrap: tabs for the balances, adding an expense, recording a payment and the history.

The snapshot worked without surprises for this app, which is good news for anyone keen to try Groovy 6 on Grails.

The desktop app: groovy-fx

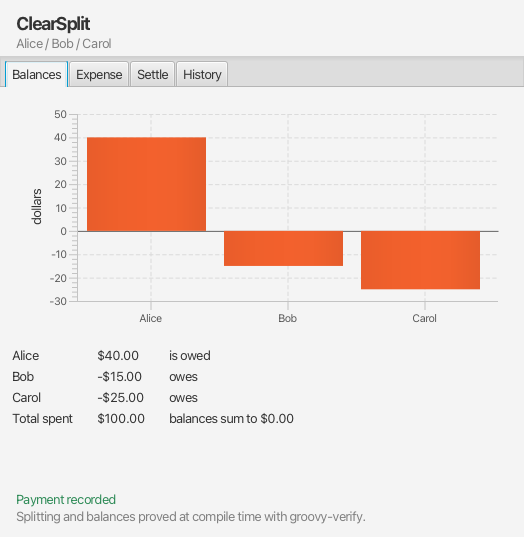

The GroovyFX app: a bar chart of the same balances

Pull request #2989 (GROOVY-11434) proposes bringing GroovyFX into Groovy itself as a groovy-fx module. It targets Groovy 7, but its sources compiled unchanged against Groovy 6.0.0 once one ASM import was pointed at the package Groovy publishes. The build extracts the module’s sources from the PR branch and compiles them, so the app can use it today.

The UI is a SceneGraphBuilder tree. Here is the Balances tab and part of the Expense tab:

tabPane(tabClosingPolicy: 'UNAVAILABLE') {
    tab('Balances') {
        vbox(spacing: 8, padding: 12) {
            barChart(id: 'chart', legendVisible: false, animated: false, prefHeight: 240,
                xAxis: categoryAxis(), yAxis: numberAxis(label: 'dollars')) {
                series('balance')
            }
            gridPane(id: 'table', hgap: 24, vgap: 4)
        }
    }
    tab('Expense') {
        gridPane(hgap: 8, vgap: 10, padding: 16) {
            label('What for', row: 0, column: 0)
            textField(id: 'description', promptText: 'Dinner', row: 0, column: 1, hgrow: 'ALWAYS')
            label('Paid by', row: 1, column: 0)
            choiceBox(id: 'payer', items: names, value: names[0], row: 1, column: 1)
            ...
            flowPane(id: 'participants', hgap: 12, row: 3, column: 1) {
                names.each { checkBox(it, selected: true) }
            }
            button('Add expense', id: 'addExpense', row: 4, column: 1, onAction: {
                def chosen = fx.participants.children.findAll { ((CheckBox) it).selected }.collect { indexOf(((CheckBox) it).text) }
                act('Expense recorded') {
                    group + group.splitEqually(fx.description.text ?: 'Expense', indexOf(fx.payer.value), amountOf(fx.amount.text), chosen)
                }
            })
        }
    }
    ...
}

Every id becomes a variable on the builder, so the event handlers read fx.description.text and fx.payer.value directly.

The app’s test runs the real UI headless using the Monocle glass platform. It types in a group, adds the dinner and taxi expenses, records a payment, checks the balances, and saves the screenshot used in this post. A desktop UI tested in CI with no display is a nice thing to have.

The Android app

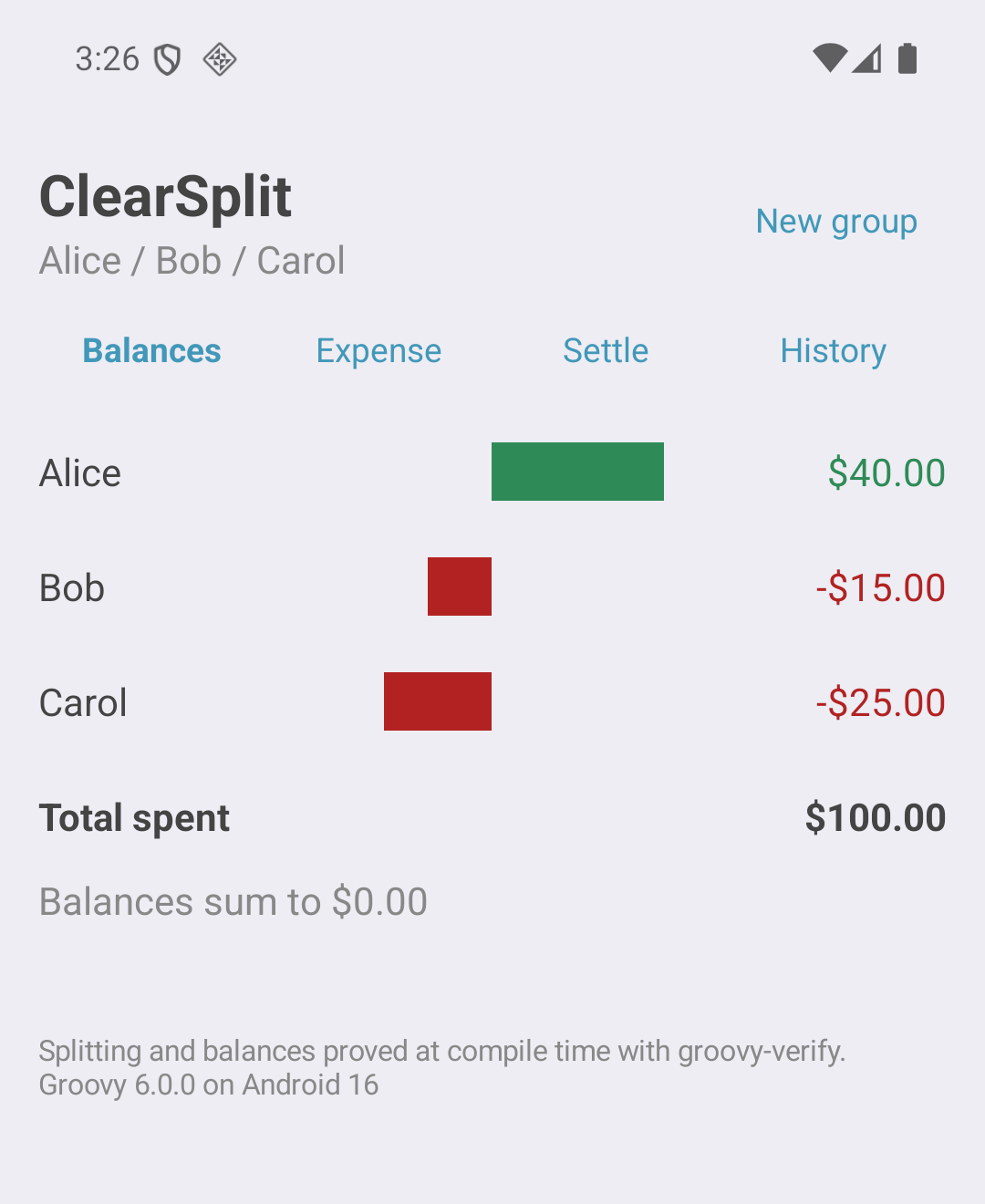

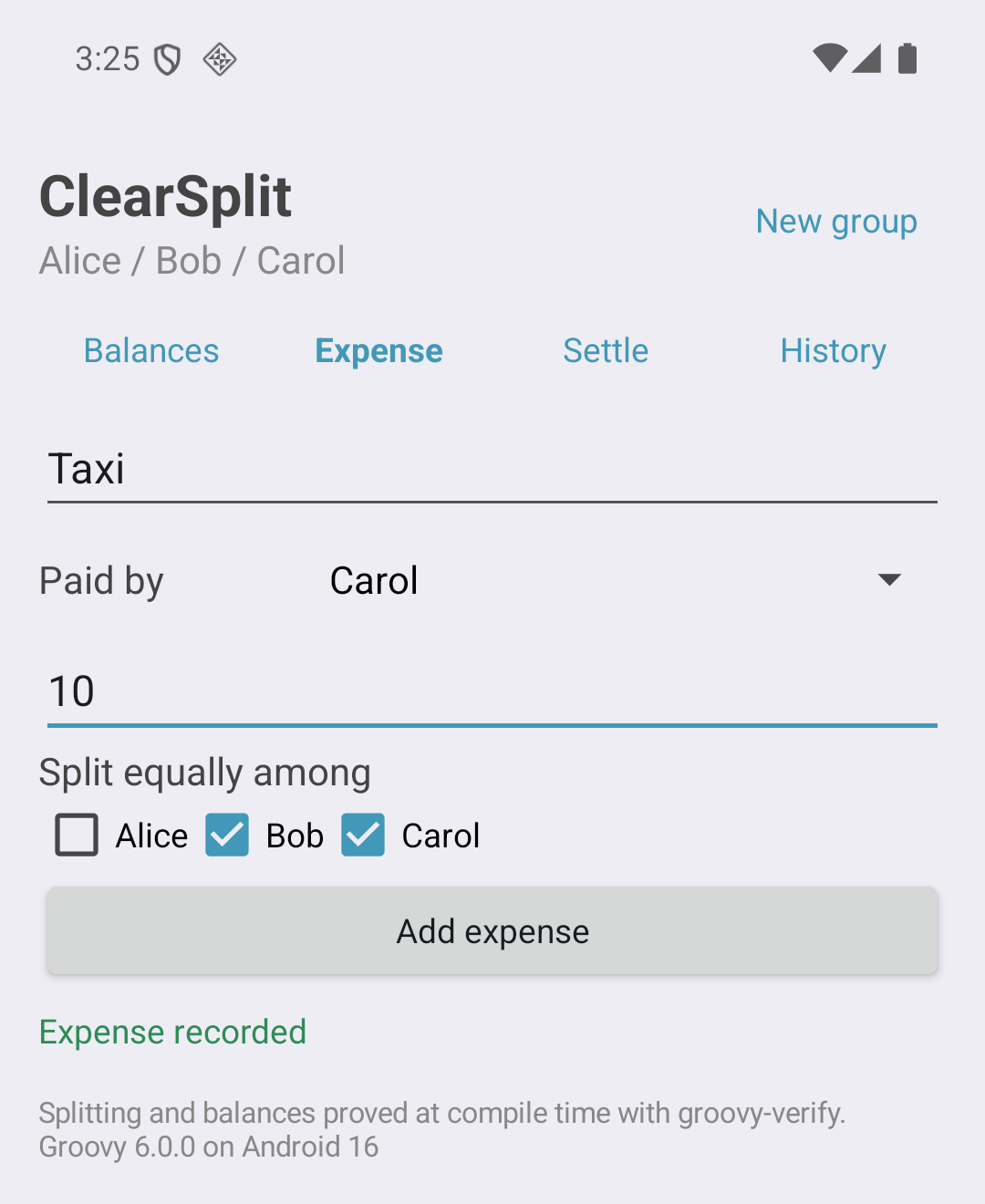

The Android app: the same balances with bars The Android app’s expense form: a taxi paid by Carol, split between Bob and Carol

The Android app follows the recipe from the tic-tac-toe post: a plain Groovy library module compiled against android.jar, a stock Android application module (AGP 9.4, minSdk 26) that depends on it like any jar, and the grooid flavour of the Groovy 6.0.0 runtime. No Groovy-specific Android plugin is needed.

The screens are built in code in dynamic Groovy, with tap and closures doing the work:

new Button(this).tap {
    text = 'Add expense'
    setOnClickListener {
        def chosen = (0..<boxes.size()).findAll { boxes[it].checked }
        act('Expense recorded') {
            group + group.splitEqually(description.text.toString().trim() ?: 'Expense',
                payer.selectedItemPosition, amountOf(amount), chosen)
        }
    }
}

The group is saved after every change as a few lines of text: the members, then one line per expense or settlement. On launch the app replays them through Group, so a saved group goes through the same validation as one typed in by hand.

The verified kernel ran on Android unchanged, but the contracts didn’t, at first. The app crashed on its first contract check:

java.lang.NoClassDefFoundError: Failed resolution of: Ljava/lang/management/ManagementFactory;
    at org.apache.groovy.contracts.generation.Configurator.initAssertionConfiguration(Configurator.java:76)

groovy-contracts' runtime reads the JVM’s -ea and -da flags through java.lang.management, to support turning contract checks on and off per package. Android has no java.lang.management. For this spike, a small module supplies a stub that reports no flags, which leaves contracts on, their default. It’s the same trick as the existing SwitchPoint shim, and equally temporary: the real fix is for groovy-contracts to fall back to its default when the management API isn’t there. After that, preconditions are checked on the phone just as on the JVM.

The R8-shrunk release APK comes in at about 1.1 MB, and both it and the debug build were exercised on an API 36 emulator for this post.

What wasn’t ported

The Dafny original has more than this spike covers:

  • Dafny ClearSplit keys members by name in maps. This port follows the LemmaScript version and uses indices.

  • The lemma that each member’s history explains their balance (ExplainSumsToBalance) is tested here, not proved.

  • The collaboration modules, for groups shared between several users, aren’t ported.

What we learned

A few practical lessons for anyone proving things with groovy-verify:

  • Specify what you mean. allocate and equally both "split money correctly", but only one of them says who pays.

  • Check the proof has teeth. Breaking the code on purpose is cheap, and it catches vacuous proofs, whether the spec or the verifier is at fault.

  • Help the solver with ghost totals. Running totals like t == shares[0..<i].sum(0) in loop invariants, and the odd intermediate assert, turned solver timeouts into quick proofs. A longer solver timeout didn’t help; restructuring the code did.

  • Stay inside the fragment. Flat arrays with offsets instead of int[][].

  • Build proofs from smaller proofs. Splitting equally into two contracted helpers, and writing conservation as a fold over the steps, keeps each proof small and the code close to the Dafny version.

And for Groovy itself: Grails 9 on Groovy 6 worked well for this app, groovy-fx is already usable on Groovy 6, and Groovy on Android has one more rough edge to file, in groovy-contracts.

Further information

Conclusion

ClearSplit is a small app with real correctness requirements: nobody wants a money app that loses a cent. In Groovy 6, the kernel’s specifications are ordinary Groovy annotations, groovy-verify proves them at compile time, and the same contracts double as runtime checks. Over that one verified core sit a Grails web app, a GroovyFX desktop app and an Android app, all on Groovy 6.0.0. Several pieces are previews, but they show where things are heading, and it’s a nice place to be heading.

Update history

23/Oct/2026: Initial version
