Graph Computing with Groovy™ and Apache GeaFlow (Incubating)

Author:

PMC Member

Published: 2026-08-13 09:00PM

Let’s explore graph computing with Apache GeaFlow (incubating), including a Groovy version of vertex-centric PageRank, and some tips for writing GeaFlow jobs in Groovy.

Apache GeaFlow

geaflow logo Apache GeaFlow (incubating) is a distributed streaming graph computing engine. It was originally developed at Ant Group, where it powers trillion-edge-scale graph workloads for scenarios like financial risk control, knowledge graphs, social network analysis, and data warehouse acceleration. It was previously open-sourced under the name TuGraph Analytics, as part of the same TuGraph family as the TuGraph graph database we looked at in our earlier Using Graph Databases with Groovy post. GeaFlow entered the Apache Incubator in June 2025, and its first Apache releases are now available from Maven Central under the org.apache.geaflow group id.

Where a graph database focuses on storing and querying graphs, a graph computing engine like GeaFlow focuses on running computations over graphs: iterative algorithms like PageRank and shortest paths, multi-hop traversals, and — GeaFlow’s speciality — doing this incrementally over streaming data, so that answers stay up-to-date as new vertices and edges arrive. If you know Apache Flink or Spark’s GraphX, GeaFlow sits in a similar space, but with graphs as first-class citizens.

GeaFlow offers two programming interfaces:

a DSL: SQL blended with ISO/GQL, the recently published international standard for graph query languages. Our graph databases post mentioned that we expected to see GQL adoption grow "in the not too distant future" — GeaFlow is one of the projects making good on that prediction.
a high-level API for the JVM, covering stream, batch, static graph, and dynamic graph computation.

The API is a natural fit for Groovy, so that’s what we’ll explore in this post.

Setting up

Our examples use GeaFlow 0.8.0-incubating. The needed dependencies are on Maven Central. For Gradle, the relevant part of the build file is:

dependencies {
    implementation "org.apache.groovy:groovy:6.0.0-beta-2"
    implementation "org.apache.geaflow:geaflow-api:$geaflowVersion"
    implementation "org.apache.geaflow:geaflow-pdata:$geaflowVersion"
    implementation "org.apache.geaflow:geaflow-cluster:$geaflowVersion"
    implementation "org.apache.geaflow:geaflow-on-local:$geaflowVersion"
    implementation "org.apache.geaflow:geaflow-pipeline:$geaflowVersion"
}

The geaflow-on-local module lets us run jobs in a local in-process environment — ideal for development, testing, and blog posts! The same job can later be deployed to a Kubernetes cluster using GeaFlow’s console and operator without code changes.

Note

GeaFlow’s RPC layer uses libraries which perform deep reflection, so on JDK 17 and later you should add JVM options such as --add-opens=java.base/java.lang=ALL-UNNAMED when running jobs (see the accompanying repo for the full set used). Without them, current GeaFlow versions can appear to hang at startup while a swallowed InaccessibleObjectException is retried — hopefully something that will improve in future versions.

A social network case study

Fans of our graph databases post will recall that it modelled the women’s 100m backstroke results at recent Olympics, where the Olympic record tumbled seven times across two games. Let’s revisit that cast of swimmers, but this time imagine they are part of a social network. We’ll suppose our swimmers follow one another as captured in this map:

val follows = [
    'Emily Seebohm'    : ['Kaylee McKeown', 'Regan Smith'],
    'Kylie Masse'      : ['Kaylee McKeown', 'Regan Smith', 'Ingrid Wilm'],
    'Regan Smith'      : ['Kaylee McKeown', 'Katharine Berkoff'],
    'Kaylee McKeown'   : ['Regan Smith', 'Emily Seebohm'],
    'Katharine Berkoff': ['Kaylee McKeown', 'Regan Smith'],
    'Ingrid Wilm'      : ['Kaylee McKeown', 'Regan Smith', 'Kylie Masse']
]

The keys of the map are the followers, and the values are the lists of swimmers they follow. (If you haven’t seen val before, it arrived in Groovy 6: like var, it declares a type-inferred local variable, but a final one.) Who are the influencers in this network? The classic algorithm for answering that question is PageRank, originally used to rank web pages, but equally applicable to any directed graph.

GeaFlow supports vertex-centric graph computation, in the style popularised by Google’s Pregel. Each vertex repeatedly receives messages from its neighbors, updates its own value, and sends new messages along its edges, until the requested number of iterations is complete. This model might feel a little unusual the first time you see it, but it’s what allows the same algorithm to scale from our six swimmers to billions of vertices partitioned across a cluster.

PageRank with the Graph API

First, we turn our follows map into GeaFlow vertices and edges. Vertices have a key (the swimmer’s name) and a value (their rank, initially 1.0). Edges have source and target keys, plus an optional value which we won’t use:

val vertices = follows.keySet().collect {
    new ValueVertex<>(it, 1d)
}
val edges = follows.collectMany { follower, followed ->
    followed.collect { new ValueEdge<>(follower, it, 1) }
}

GeaFlow jobs read their data through sources. GeaFlow provides file-based and connector-based sources, but writing our own source backed by an in-memory list is only a few lines of Groovy (see CollectionSource in the accompanying repo, modelled on the FileSource class from GeaFlow’s own examples).

A job is expressed as a PipelineTask. We build sources for our vertices and edges, describe the graph view that will hold the graph, and then compute over it:

static class PRTask implements PipelineTask {
    @Override
    void execute(IPipelineTaskContext ctx) {
        // ... follows, vertices, edges as above ...

        val vertexSource =
            ctx.buildSource(new CollectionSource<IVertex<String, Double>>(vertices),
                AllWindow.getInstance())
        val edgeSource =
            ctx.buildSource(new CollectionSource<IEdge<String, Integer>>(edges),
                AllWindow.getInstance())

        val graphViewDesc = GraphViewBuilder.createGraphView(GraphViewBuilder.DEFAULT_GRAPH)
            .withShardNum(1)
            .withBackend(IViewDesc.BackendType.Memory)
            .build()

        val graph = ctx.buildWindowStreamGraph(vertexSource, edgeSource, graphViewDesc)

        graph.compute(new PRAlgorithm(10, 0.85d))
            .compute(1)
            .getVertices()
            .sink(new ConsoleSink())
    }
}

A few things to note:

We’re writing idiomatic dynamic Groovy here — no explicit types are needed for the sources or the graph. If you prefer compile-time type checking, adding @CompileStatic works too, at the cost of a few explicit generic types to help inference along.
AllWindow tells GeaFlow to read all of the data as one batch, giving static graph computation. Size-based tumbling windows are used instead when processing streaming data incrementally.
The graph view here uses the Memory backend. RocksDB and other backends are available for graphs that don’t fit in memory.
withShardNum and the parallelism arguments are all 1 for our tiny example but are the knobs used to scale out on a cluster.

The algorithm itself extends VertexCentricCompute and supplies a compute function. Here is PageRank expressed in that style:

static class PRAlgorithm extends VertexCentricCompute<String, Double, Integer, Double> {
    double alpha

    PRAlgorithm(long iterations, double alpha) {
        super(iterations)
        this.alpha = alpha
    }

    @Override
    VertexCentricComputeFunction<String, Double, Integer, Double> getComputeFunction() {
        new PRComputeFunction(alpha: alpha)
    }

    @Override
    VertexCentricCombineFunction<Double> getCombineFunction() {
        null
    }
}

static class PRComputeFunction implements VertexCentricComputeFunction<String, Double, Integer, Double> {
    double alpha
    VertexCentricComputeFunction.VertexCentricComputeFuncContext<String, Double, Integer, Double> context

    @Override
    void init(VertexCentricComputeFunction.VertexCentricComputeFuncContext<String, Double, Integer, Double> ctx) {
        context = ctx
    }

    @Override
    void compute(String vertexId, Iterator<Double> messages) {
        val vertex = context.vertex().get()
        val outEdges = context.edges().outEdges
        if (context.iterationId == 1L) {
            if (outEdges) {
                context.sendMessageToNeighbors(vertex.value / outEdges.size() as double)
            }
        } else {
            double sum = messages.sum(0d)
            double pr = sum * alpha + (1 - alpha)
            context.setNewVertexValue(pr)
            if (outEdges) {
                context.sendMessageToNeighbors(pr / outEdges.size())
            }
        }
    }

    @Override
    void finish() { }
}

In the first iteration, each swimmer shares their influence equally among everyone they follow. In subsequent iterations, each swimmer’s influence is recalculated from the messages received from their followers, damped by the usual PageRank alpha factor, and shared again. Groovy niceties like messages.sum(), Groovy truth for the outEdges check, and the named-argument constructor keep the code pleasantly compact.

A simple sink prints the results:

static class ConsoleSink implements SinkFunction<IVertex<String, Double>> {
    @Override
    void write(IVertex<String, Double> v) {
        printf '%-17s has influence %.2f%n', v.id, v.value
    }
}

Finally, the main method creates a local environment, submits the task, and runs it:

static void main(String[] args) {
    val environment = EnvironmentFactory.onLocalEnvironment()
    val pipeline = PipelineFactory.buildPipeline(environment)
    pipeline.submit(new PRTask())
    val result = pipeline.execute()
    result.get()
    environment.shutdown()
    System.exit(0)
}

Running it starts an in-process mini-cluster (master, container, and driver all within our JVM) and completes in a few seconds with:

Emily Seebohm     has influence 0.94
Regan Smith       has influence 1.85
Kylie Masse       has influence 0.21
Katharine Berkoff has influence 0.94
Ingrid Wilm       has influence 0.21
Kaylee McKeown    has influence 1.85

The two swimmers who traded the Olympic record back and forth, Kaylee McKeown and Regan Smith, come out on top — as our hypothetical follower graph intended. Phew!

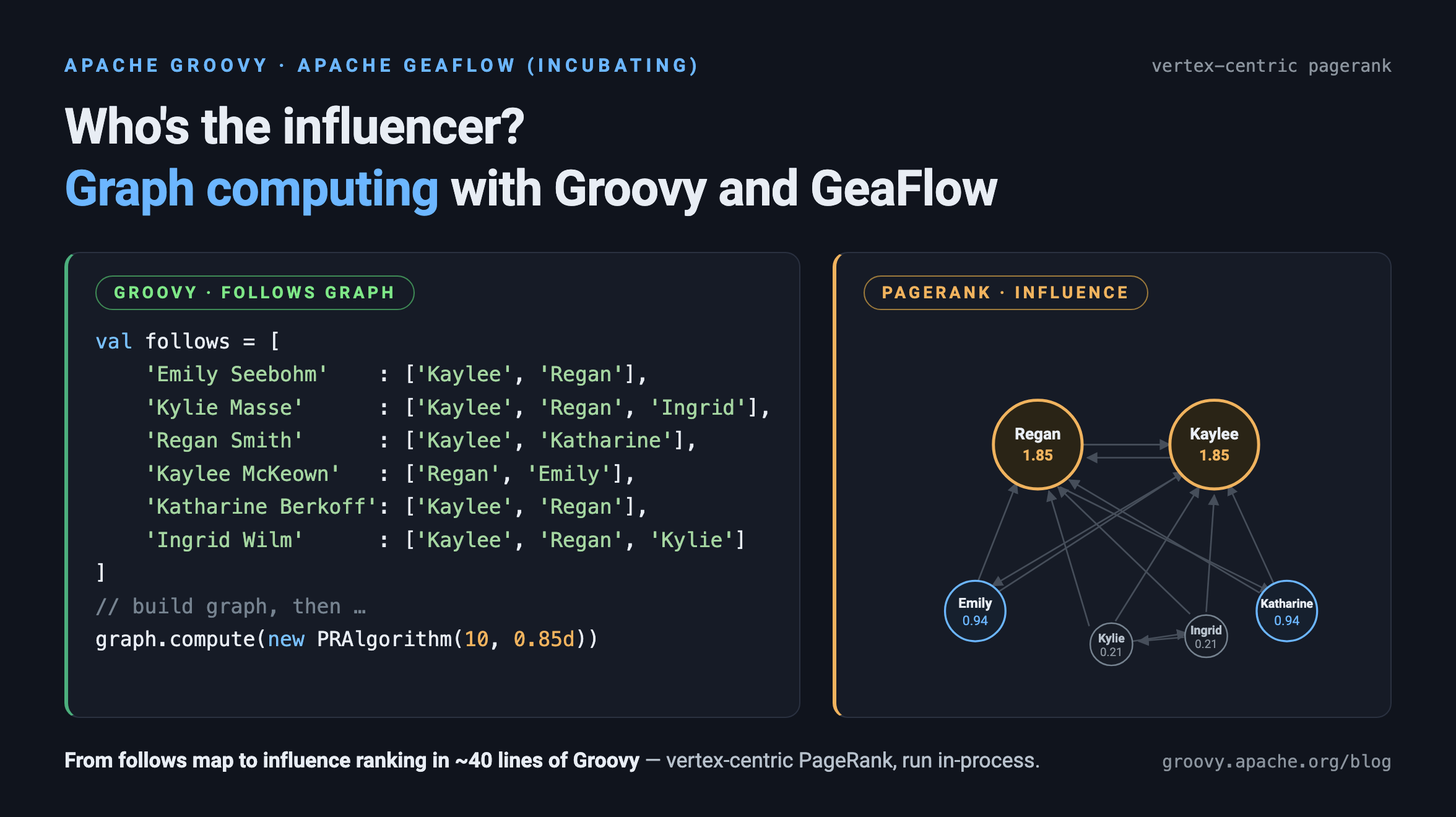

From follows map to influence ranking with Groovy and GeaFlow

A note on serialization

GeaFlow is a distributed system. Tasks and functions are serialized and shipped across process boundaries — even in local mode. So, write your tasks, sources, sinks, and compute functions as classes (as we did above), or, with static compilation, as lambda expressions or method references — all of these serialize cleanly. Avoid closures for these particular functions: they are converted to dynamic proxies which GeaFlow won’t currently transport. More details, including a related method reference issue affecting earlier Groovy versions (GROOVY-11993, fixed in Groovy 6), can be found in the accompanying repo.

What else is in the box?

We’ve only scratched the surface of GeaFlow with our little example. Other parts of the project worth knowing about:

The SQL+GQL DSL. GeaFlow jobs can be written in SQL blended with ISO/GQL graph pattern matching. Here’s the heart of GeaFlow’s real-time loop-detection demo, which continuously finds 4-hop cycles as edges stream in:

INSERT INTO tbl_result
SELECT DISTINCT a_id, b_id, c_id, d_id, a1_id
FROM (
  MATCH (a:person) -[:knows]->(b:person) -[:knows]-> (c:person)
        -[:knows]-> (d:person) -> (a:person)
  RETURN a.id as a_id, b.id as b_id, c.id as c_id, d.id as d_id, a.id as a1_id
);

Connectors for the DSL covering files, sockets, Kafka, Pulsar, Hive, JDBC, HBase, Elasticsearch, Hudi, Paimon, and even Neo4j.
Dynamic graph computation: the same vertex-centric algorithms can run incrementally against a graph view that is continuously updated from streaming vertex and edge sources — GeaFlow’s headline feature, and a great topic for a future post.
A web console for submitting and managing jobs, and Kubernetes support for cluster deployment.
Some intriguing AI-adjacent modules, including geaflow-mcp (an MCP server for querying GeaFlow) and geaflow-ai (a graph-based memory server for AI agents).

Conclusion

We have looked at Apache GeaFlow (incubating), seen its connection to technologies from our earlier graph databases post, and run a vertex-centric PageRank written in Groovy on it. We’ve also gathered some practical tips for pairing Groovy with GeaFlow’s distributed runtime. We wish the GeaFlow community well on its incubation journey!

The code for the examples in this post can be found here:

https://github.com/paulk-asert/groovy-geaflow

Note

Apache GeaFlow is an effort undergoing incubation at The Apache Software Foundation (ASF), sponsored by the Apache Incubator. Incubation is required of all newly accepted projects until a further review indicates that the infrastructure, communications, and decision making process have stabilized in a manner consistent with other successful ASF projects.
